Mechanical Design Project

Mechanics | Oscillating Fan

Understanding the Double-Rocker Four-Bar Mechanism

NID Ahmedabad

Dr. Ranjit Konkar

Engineering Innovation in Motion

The oscillating fan demonstrates how simple yet elegant mechanisms can create complex motion patterns. Under the supervision of Dr. Ranjit Konkar, Principal Faculty, Product Design, NID Ahmedabad, this project explores the fascinating world of the double-rocker four-bar mechanism.

The oscillating fan uses mechanical linkages to convert rotational motion into controlled oscillation.

The Double-Rocker Four-Bar Mechanism

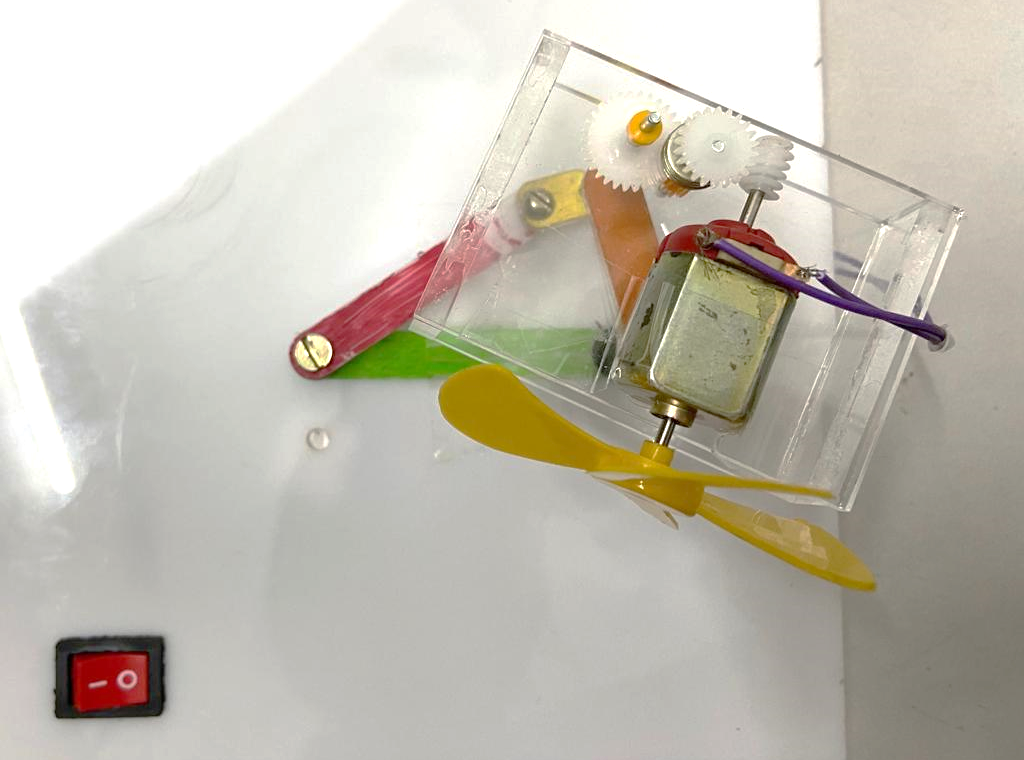

Complete Assembly

The final model showcasing the integration of motor, gears, and linkage system

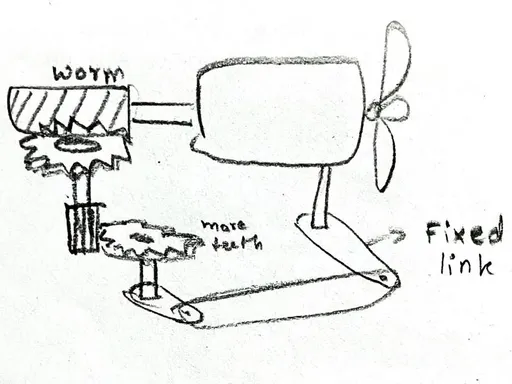

Design Blueprint

Technical sketch showing the worm gear and fixed link configuration

Gear Assembly

Precision-cut acrylic gears demonstrating the speed reduction mechanism

At the heart of this innovation lies a single motor that ingeniously drives both the fan rotation and the oscillation mechanism. The motor's rotation is transferred to the coupler via carefully calculated worm gears, chosen after rigorous mathematical analysis for optimal speed reduction.

The gearbox and linkages, crafted from laser-cut acrylic sheets and assembled with precision nuts and bolts, create a transparent view of the mechanism in action.

From Concept to Reality

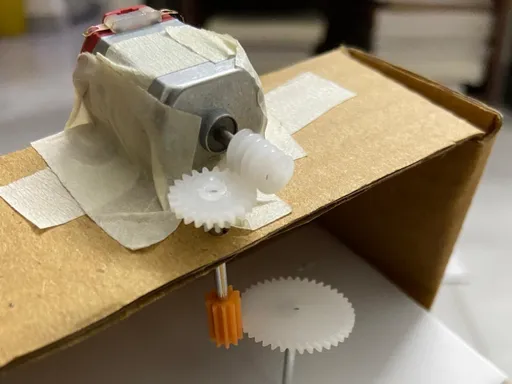

Motor Integration

The motor and gear assembly showing the worm gear speed reduction system

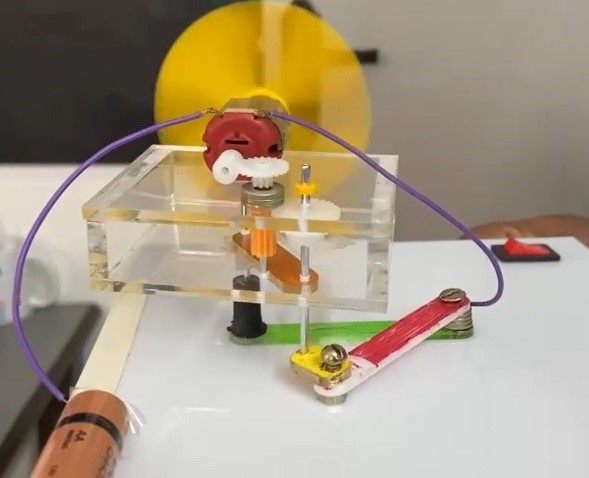

Testing & Validation

Final testing phase demonstrating the smooth oscillation pattern

See It in Action

Watch the oscillating fan in operation, showcasing the smooth transition between rotational and oscillatory motion through the four-bar linkage system.
