Exploring the Engineering Marvel of Crank-Rocker Four-Bar Mechanisms
Exploring the Engineering Marvel of Crank-Rocker Four-Bar Mechanisms
Supervised by Dr. Ranjit Konkar
Principal Faculty, Product Design, NID Ahmedabad
Have you ever wondered about the intricate mechanics behind your car's windshield wipers? Every time you activate them during a rainy drive, you're witnessing a masterpiece of mechanical engineering in action.
The windshield wiper system exemplifies the elegance of the crank-rocker four- bar mechanism – a fundamental concept in automotive design. This project delved deep into understanding how this seemingly simple mechanism converts rotational motion into the precise oscillating movement that keeps our vision clear during adverse weather conditions.
To understand the crank-rocker four-bar mechanism and produce a functioning model of the windshield wiper using modern CAD design and laser-cutting manufacturing techniques.
Real-world application in vehicle safety systems
In biomechanics and mechanical engineering, the four-bar linkage represents one of the most versatile mechanisms for motion conversion. Think of it as the mechanical equivalent of how our elbow joint works – transforming one type of movement into another with precision and efficiency.
The crank-rocker configuration specifically ensures that while the input crank makes complete rotations, the output rocker oscillates within a limited arc – exactly what's needed for windshield wiper functionality.

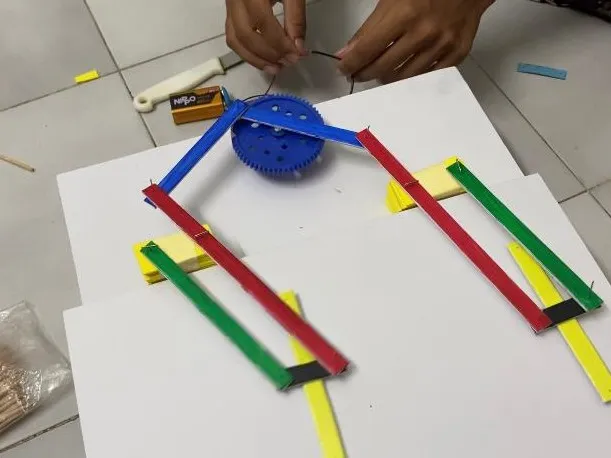

The journey began with creating a rough cardboard model to understand the fundamental mechanics. This hands-on approach allowed us to visualize the motion patterns and identify potential design challenges before moving to digital design.
Transitioning from cardboard to digital precision, we utilized advanced CAD software to design each link with exact specifications. This phase involved calculating optimal link lengths, joint positions, and ensuring smooth kinematic motion throughout the operating range.

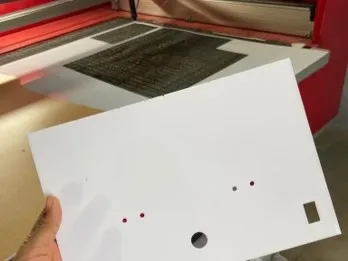

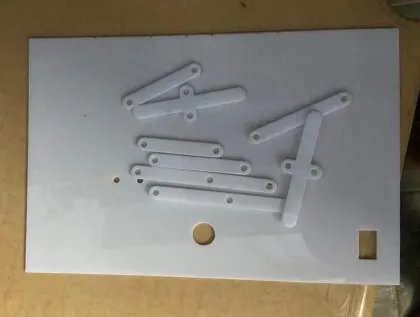

Using laser-cutting technology on acrylic sheets, we achieved the precision required for smooth operation. This manufacturing method demonstrates how modern fabrication techniques enable rapid prototyping of complex mechanical systems.

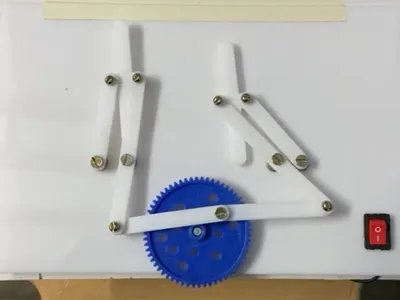

The final assembly integrated all components with a motor drive system. Careful attention to joint clearances and alignment ensured smooth operation characteristic of well-designed four-bar mechanisms.
The culmination of engineering design, precise manufacturing, and careful assembly
Achieved smooth oscillating motion with controlled arc limits
Laser-cut precision components with reliable mechanical joints
Motor-driven system demonstrating real-world functionality
This windshield wiper project perfectly demonstrates how fundamental mechanical principles translate into everyday safety technologies. The crank-rocker four-bar mechanism, while conceptually simple, requires precise engineering to achieve the reliability we expect in automotive systems.
Through hands-on design, manufacturing, and testing, we've explored how biomechanical principles guide the development of mechanisms that must perform flawlessly in critical safety applications. This project bridges the gap between theoretical mechanics and practical engineering solutions that impact millions of drivers worldwide.
